Water Well Solar Pumping
WATER WELL SYSTEM

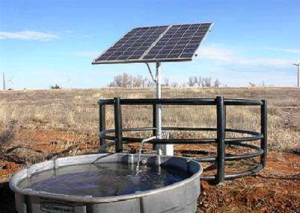

Our Well Package is designed for a stand
alone, solar only pumping
solution capable of delivering 2.5~3.5 GPM
with a lift of 200~300 feet.
(500~600 feet available, ask us)
Our system is:
- A Simple and RELIABLE design, with no batteries required. (May be added as an option)
- Powered by photovoltaic panels that last for decades.
- Sealed piston mechanism, efficient in low sunlight
- Tolerates sand and running dry
- Easy to install, by machine or by hand

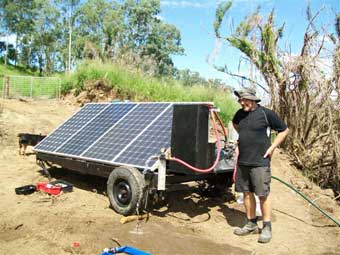

- Fits a wide range of needs, deep wells, surface water, portable applications etc.
- All metal construction
- 5-10 year maintenance interval, FIELD SERVICEABLE
We use a positive displacement piston mechanism
to force the water up.
This allows the system to pump at low speeds
when sunlight is weak
(unlike centrifugal submersibles).
The motor is variable speed DC, brush
type.
This eliminates the complex electronics that
brushless motors require.
Special long life, carbon alloy brushes wear
at predictable intervals
(generally 5-10 years) and are easy to replace
in the field.
(Maintenance kits are available)
The pump controller allows the pump to work
without batteries.
It provides a surge to start the motor and
boosts the current in
low sunlight conditions to prevent stalling.
It includes a remote float switch circuit
to prevent storage tank overflow.
Our package includes:
1) The pump
1) Pump controller
1) PV Disconnect switch
1) 300' of 3/4" polyethylene
Pipe
2) SDR Adapter 3/4"
MPT
1) 300' well safety rope
polypropylene
1) PWT pipe tape
1) SPK-1 splice kit
1) Solar wiring kit
4) BP275 75 watt
solar panels
1) Top of pole Aluminum
Rack. (Pole not included)
(Sun Tracker option also available)
Inquire for current price of the above kit.

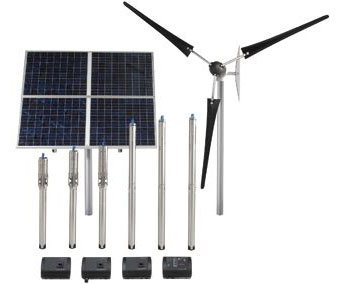

Many other systems are available depending
on your special needs.
*******************************************************************************
If you currently have a well pump, we can
"Solarize" that too.
We just need to know your HP (Horse Power)
rating on your pump,
Voltage (110~240), Average run time per day
(most are in the 1-2 hour range) and geographic location (to figure
in hours of usable sunlight).
Drop us an email and we'll get back to you usually within 24 hours.
AGAIN,...We will need the following:
Your geographic location (What
city and province)
The horse power (hp) rating
of your current pump(s)
Or the Watt or Amp rating of
your pump(s)
The Voltage requirements of
your pump(s)
And the average run time. (Take
a guess)
That's it....
