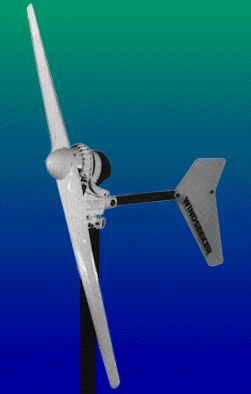

WINDSEEKER
 |
For a decade, Windseeker
wind turbines have set the standard for affordable, reliable
wind power. With their unique patented upward-furling design,
they produce power year after year, dependably, in conditions
from low wind to the extremes of stormy mountain tops.
3-bladed model available for smoother & quieter operation.
Marine version available.
Unique to the Windseeker Other turbines cut output by as much
as 90% once the wind governor is activated. Windseeker's output
drops only 15%, retaining approximately 85%of full power, even
in winds exceeding 120 mph.
$1945
ORDER
NOW
|
Features:
Double
ball bearing yaw shaft
Durable
powder coated finish
M-19
magnetic steel
Nickel
plated magnets
Light
weight, corrosion resistant cast aluminum and stainless steel
construction
Brushless
neodymium permanent magnet alternator
Precision,
computer designed aircraft quality rotor
Built
in safety electronics in the "smart" voltage regulator
restricts dangerous voltage surge
Military
specified safety protection electronics regulates voltage and
rotor RPM
Polyurethane
UV prop tape protects leading edge
Easy
to erect, low cost tower designs available
Specifications
|
Rotor Diameter: |
60" (1.52 m) |
|
Weight: |
20 lbs (9 kg) |
|
Start up windspeed: |
5mph (2 m/s) |
|
Output: |
500 watts |
|
Alternator: |
PM 3 phase brushless |
|
Output Voltage:
(adjustable) |
Preset 14.8 - 12
volt model
Preset 29.5 - 24 volt model |
|
Voltages available: |
12, 24 vdc models
standard
(Inquire for others.) |
Windseeker is the ideal turbine when your power
requirements are higher or you have extremely windy conditions.
Since its inception over ten years ago, over 4000 Windseekers
have been produced.
OPERATION: The Windseeker has a permanent
magnet brushless alternator that rectifies the voltage and controls
the output internally. This allows better control of the alternator
and minimizes connections to the battery. This is also a safety
feature, preventing the turbine from damaging itself or harming
the user due to excess voltage.
REGULATION & CONTROL ELECTRONICS: The electronics performs several functions
to assure maximum output and safety for the user. The control
electronics maintain a load on the alternator at all times to
make sure that the turbine never over speeds, regardless of the
condition of the battery. As the battery is charged, the sophisticated
regulator periodically checks the line, correcting for voltage
loss and monitoring charge rate. Once the battery has reached
its optimum charge level the regulator shuts the current off,
preventing the battery from being overcharged while maintaining
a load on the alternator at all times to prevent over speeding.
If your application
requires a powerful wind turbine and is in a place with potentially
high winds then consider the Windseeker.
